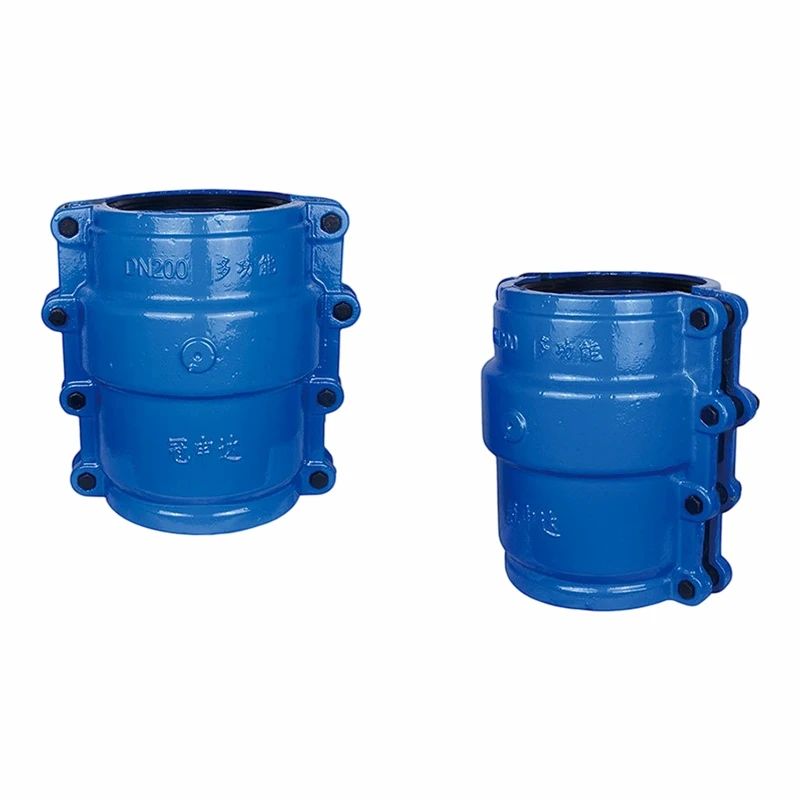

Multi Purpose Pipe Repair Clamp

The Multi Purpose Pipe Repair Clamp is a flexible repair tool for many leak situations. You can use it on straight pipe sections. You can use it on irregular fittings. It works as a temporary fix or a permanent seal. This clamp gives repair crews one product for many different jobs.



The housing is wider than standard clamps. This gives more sealing coverage. The wider design covers cracks and small holes easily. It can also cover two nearby leaks at the same time. The EPDM gasket is made from high-elasticity rubber. It adapts to small bumps and uneven surfaces on the pipe wall. Even if the pipe has slight oval shape or thick coating, the clamp seals well. It fits ductile iron, steel, PE, and PVC pipes.



We have 14 years of experience in this industry. Our factory holds ISO 9001, ISO 14001, and ISO 45001 certifications. Our quality team tests every product at 2.4 MPa water pressure. This is higher than the normal working pressure. We also have a health permit for drinking water systems. This means our Multi Purpose Pipe Repair Clamp is safe for water supply networks.

The wider housing is the key feature of this clamp. Standard clamps have narrow sealing bands. They may not cover long cracks or multiple holes. Our clamp has a 50% wider sealing area. This extra width gives more room for the gasket to grip the pipe. It also helps when the leak location is not precise. You do not need to measure the exact leak point. Just place the clamp over the general area and tighten.

A water company in a northern provincial capital uses this clamp as their standard repair tool. Over one year, their crews fixed more than 200 leaks using this clamp. The leaks were on different pipe materials: cast iron, PE, and steel. The pipe sizes ranged from DN50 to DN200. The repair success rate was over 98%. This real data shows the Multi Purpose Pipe Repair Clamp works well in daily operations.

The housing is QT450 ductile iron with epoxy coating. The bolts are 8.8 grade with anti-loosening washers. The EPDM gasket lasts over 10 years without aging. We offer a 10-year warranty on every clamp.
