Handles Pipe Movement and Deflection

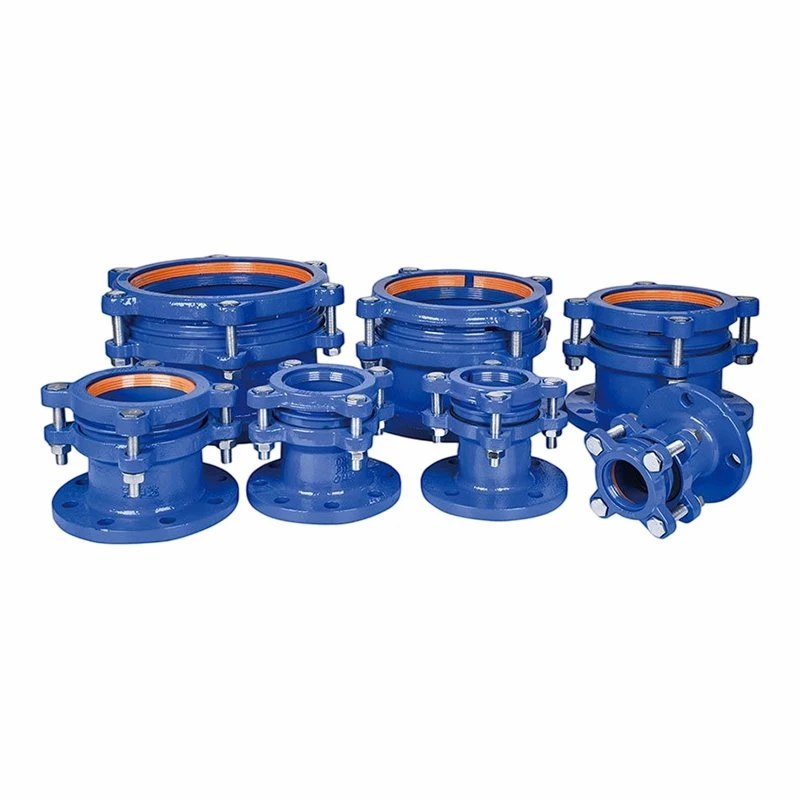

The Flexible Pipe Connector allows angular deflection and axial movement. Pipelines cross settlement zones or earthquake areas. Bridge sections move with temperature. These pipes need joints that bend without leaking. Our connector uses a floating seal design. It allows up to 5 degrees of angular deflection and up to 30mm of axial movement.

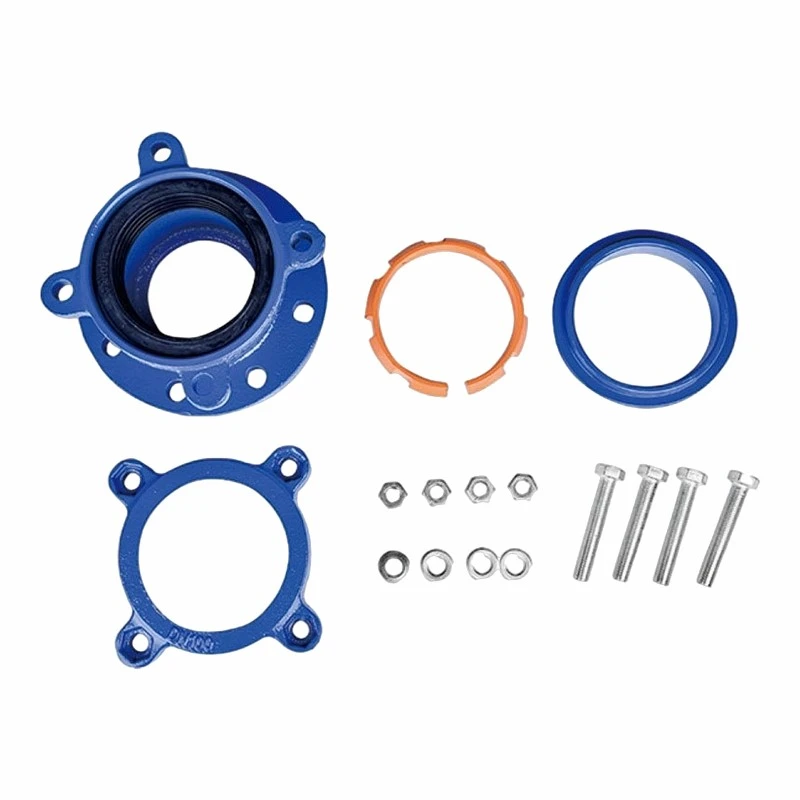

The gasket sits in a floating groove inside the housing. When the pipe deflects, the floating seal moves with it. The seal stays against the pipe wall. Even at an angle, the seal does not break. The deflection capacity is typically 3 to 5 degrees. The axial movement capacity is 10 to 30mm, depending on pipe size. This meets most engineering needs for flexible connections.
Our products are tested by the Shanghai Institute of Quality Inspection. They pass housing strength and seal performance tests. We hold ISO 9001, ISO 14001, and ISO 45001 certifications. Our lab has a material composition analyzer, hardness tester, tensile tester, and pressure test equipment. We verify every batch's material properties and seal performance.
Survived an Earthquake
A water supply project crossed an active fault zone. The design required each joint to absorb seismic movement. Engineers installed our Flexible Pipe Connector at every connection. During a small earthquake in the region, the pipe sections with our connectors survived intact. The adjacent sections without flexible connectors had multiple joint failures. This real case proved the value of our product.
We offer a 10-year warranty. The high-elasticity EPDM gasket returns to its original shape after deflection. All bolts have anti-loosening washers. If you tell us the expected deflection angle and movement amount, our technical team will recommend the right model.
Technical Parameters
|
Parameter |
Specification |
|
Application |
Settlement zones, earthquake areas, bridge sections |
|
Working Pressure |
≤1.6 MPa |
|
Housing Material |
QT450 ductile iron |
|
Sealing Material |
High-elasticity EPDM rubber (floating seal) |
|
Bolt Grade |
8.8 high-strength steel with lock washers |
|
Surface Treatment |
Epoxy powder coating |
|
Diameter Range |
DN50 – DN600 |
|
Angular Deflection |
3° – 5° |
|
Warranty |
10 years |
