Absorbs Thermal Expansion and Contraction

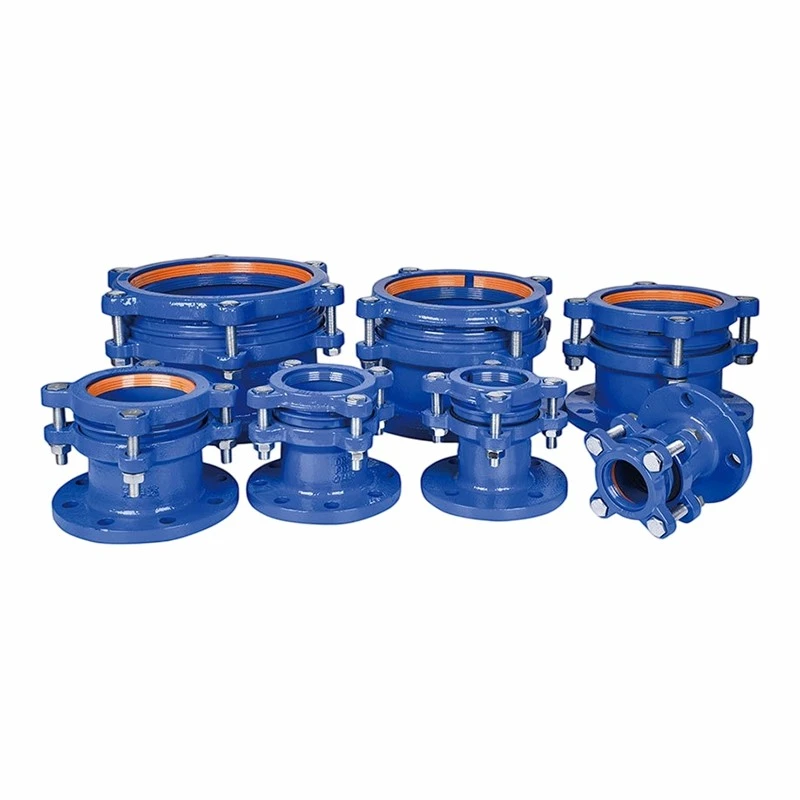

The Telescopic Pipe Connector handles thermal movement in pipelines. Pipes expand in summer and contract in winter. If joints cannot move, thermal stress builds up. This can crack joints or break bolts. Our connector has a built-in telescopic section. It absorbs axial movement automatically. This releases thermal stress and protects the pipeline.

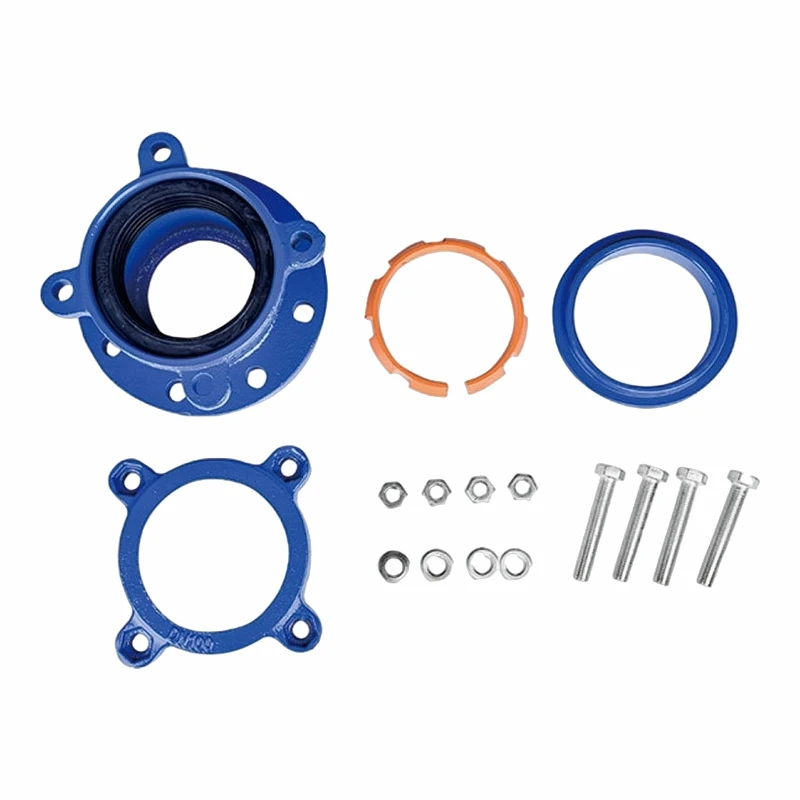

The connector has an expansion cavity in the middle of the housing. The spigot end slides in and out of this cavity. When the pipe expands, the spigot moves inward. When the pipe contracts, the spigot moves outward. The gasket stays against the pipe wall during all movement. It does not leak during expansion or contraction. We preset the expansion capacity at the factory based on your design requirements. No field adjustment is needed. This connector is ideal for exposed pipes, hot water lines, and buried pipes in areas with large temperature differences.
We hold ISO 9001, ISO 14001, and ISO 45001 certifications. Our R&D team has deep experience in expansion compensation. We have a health permit for drinking water products. We test every connector for smooth movement and seal performance before shipping.
Survived Three Heating Seasons
A heating network in a northeastern city used our connector on exposed hot water pipes. The outside temperature drops to -30°C in winter. The water temperature reaches 90°C. The expansion was significant. Our Telescopic Pipe Connector handled the movement every day for three heating seasons. The system had no leaks. The client was very satisfied.
We offer a 10-year warranty. The expansion cavity interior is machined smooth and coated. The sliding surface does not stick. The gasket uses a temperature-resistant EPDM compound. It stays flexible from -40°C to 180°C. Tell us your expected expansion amount. We will customize the connector for you.
Technical Parameters
|
Parameter |
Specification |
|
Application |
Pipelines with large temperature changes |
|
Working Pressure |
≤1.6 MPa |
|
Housing Material |
QT450 ductile iron |
|
Sealing Material |
Temperature-resistant EPDM rubber |
|
Bolt Grade |
8.8 high-strength steel |
|
Surface Treatment |
Epoxy powder coating |
|
Diameter Range |
DN50 – DN400 |
|
Expansion Capacity |
10 – 30mm (custom based on requirements) |
|
Temperature Range |
-40°C to 180°C |
|
Warranty |
10 years |
