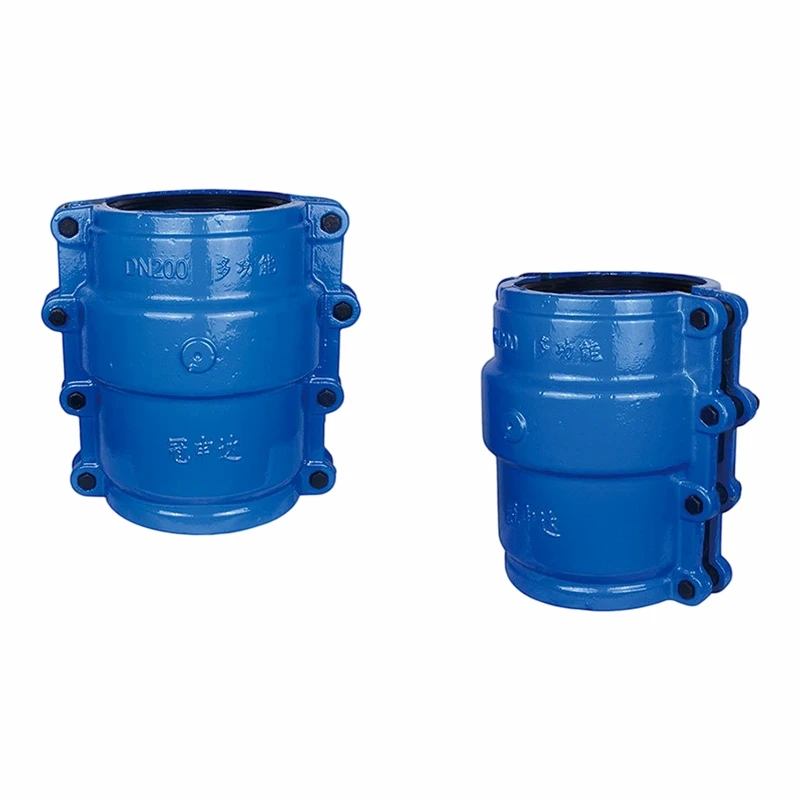

One Clamp for Almost Every Pipe
The Universal Pipeline Emergency Repair Clamp is our flagship product. It is the result of 14 years of field experience. We designed it to solve the biggest problem repair crews face: uncertainty. You never know exactly what pipe material, size, or leak shape you will find. Our clamp covers most of them with one product.
The gasket has a graduated compression structure. It adapts to a range of pipe diameters. The housing has multiple bolt hole positions. You can adjust the clamping location to fit the leak. The gasket has a large contact area. It seals well even on pipes with scratches or corrosion pits. The clamp works on cast iron, steel, PE, and PVC pipes. One clamp model can replace several specific sizes on your truck.
We have 14 years of experience in repair products. We hold ISO 9001 and ISO 14001 certifications. Our products are tested by the Shanghai Institute of Quality Inspection. We have many patents. Our annual sales exceed 80 million RMB. We have a national sales network and fast delivery. Our technical team can help you select the right clamp.
Reduces Inventory for Water Utilities
A water utility on a southeastern island had limited storage space. They bought our Universal Pipeline Emergency Repair Clamp for DN50 to DN150 pipes. One product covered all their needs for cast iron, PE, and steel pipes. Their inventory dropped from eight types to three types. Warehouse management became simpler and more efficient.
We offer a 10-year warranty. The housing is QT450 ductile iron with epoxy coating. The gasket is high-elasticity EPDM with a graduated compression design. Sizes cover DN15 to DN300. Larger sizes are available on request.
Technical Specifications
|
Parameter |
Specification |
|
Application |
Universal repairs – multiple pipe materials, sizes, and leak types |
|
Working Pressure |
≤1.6 MPa |
|
Housing Material |
QT450 ductile iron (universal design) |
|
Sealing Material |
High-elasticity EPDM (graduated compression) |
|
Bolt Grade |
8.8 high-strength steel |
|
Surface Treatment |
Epoxy powder coating |
|
Diameter Range |
DN15 – DN300 |
|
Pipe Materials |
Cast iron, steel, PE, PVC, and more |
|
Warranty |
10 years |
