Fast Deployment for Burst Pipe Emergencies
The Emergency Pipe Repair Clamp is designed for sudden pipe bursts and major leaks. Every minute counts when a main breaks. Water floods streets and damages property. This clamp prioritizes speed. It comes fully pre-assembled from the factory. Open the box and install it directly. No assembly, no parts counting, no delays at the job site.
The design uses the fewest possible bolts. The bolt pattern is simple and easy to follow. Even a first-time user can install it correctly. Installation marks are cast into the housing. All bolts are pre-installed and pre-torqued. You do not need to search for missing hardware. The housing is made from thick QT450 ductile iron. It resists impact and handles high pressure. The EPDM gasket is flexible and seals across a wide range of pipe sizes.
We hold ISO 9001 certification. Every clamp is hydro-tested at 2.4 MPa before shipping. We keep test records for every batch. Our after-sales team is available 24/7. Call us anytime for emergency installation support.
Used in a Mountain Landslide
A county in a southwestern mountain region had a DN200 main burst after a landslide. The road was blocked. Heavy equipment could not reach the site. Two repair workers carried our Emergency Pipe Repair Clamp on foot. They walked into the disaster area. They installed it by hand with basic tools. The clamp stopped the leak and restored water to the village. This proves the clamp works even without power or heavy machinery.

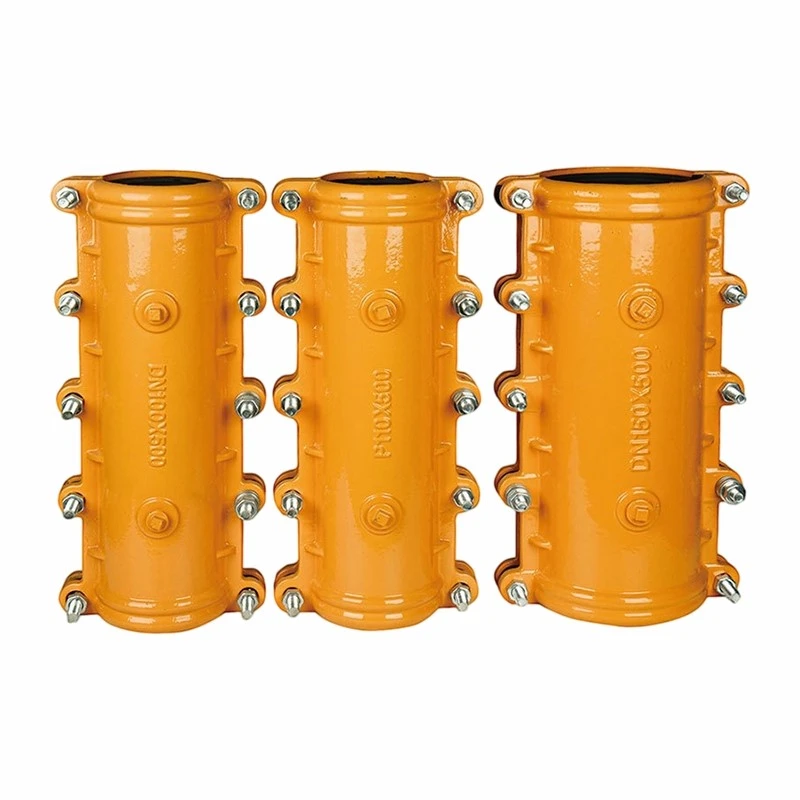

The clamp has a yellow or orange coating. This makes it easy to find in a crowded truck or storage room. We recommend keeping this clamp as emergency stock. Inspect it periodically and keep it ready for use.
Technical Specifications
|
Parameter |
Specification |
|
Application |
Burst pipes and major leak emergencies |
|
Working Pressure |
≤1.6 MPa |
|
Housing Material |
QT450 ductile iron (thick design) |
|
Sealing Material |
High-elasticity EPDM rubber |
|
Bolt Grade |
8.8 high-strength steel (pre-installed) |
|
Surface Treatment |
Epoxy powder coating (yellow/orange) |
|
Diameter Range |
DN15 – DN400 |
|
Installation Time |
~20 minutes (skilled worker) |
|
Warranty |
10 years |
