Install in Half the Time
The Quick Install Pipe Repair Clamp is our speed-optimized repair clamp. Speed is critical in leak repairs. Every extra minute of water shutoff costs money and upsets customers. We reduced the installation time by nearly 40% compared to traditional clamps. This is ideal for time-sensitive repairs.

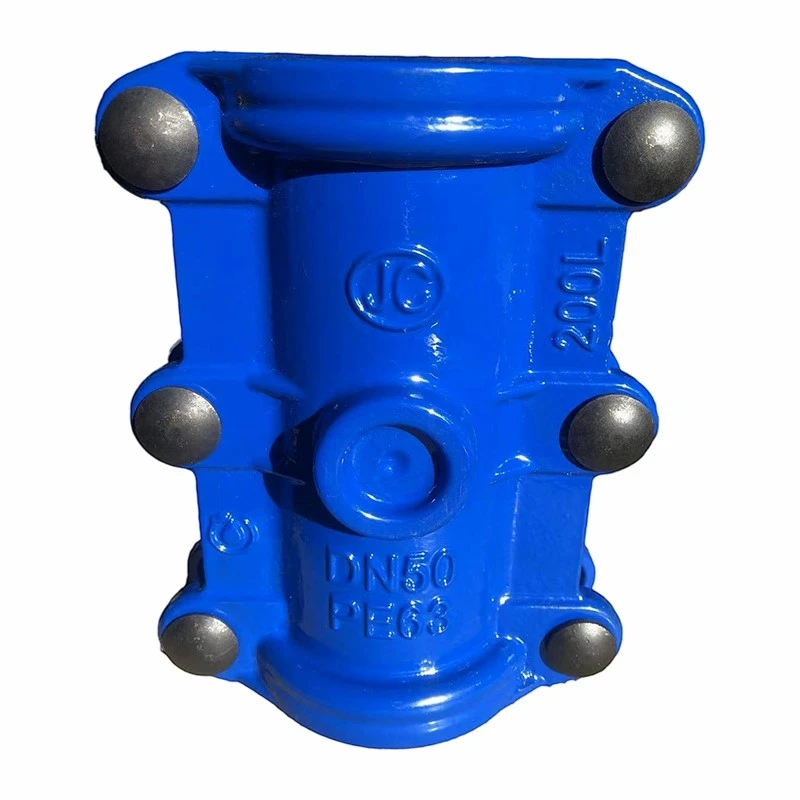

The clamp has a hinge on one side of the housing. The two halves stay connected permanently. Installation is like closing a book. Open the housing, place it on the pipe, and close it. The hinge aligns the bolt holes
automatically. No need to line up holes by hand. The bolts have a captured design. They do not fall out when loosened. This prevents lost parts at the job site. The nuts have a quick-turn design. You can use an impact wrench to tighten them faster.
Our R&D team focuses on structural optimization. We gather user feedback and improve every product generation. Our sales team visits customers and collects field input. This continuous improvement cycle makes our clamps easier to use every year.
Speed Record in Utility Competition
A provincial capital water company held a repair skills competition. They used our Quick Install Pipe Repair Clamp as one of the contest items. The average installation time was 12 minutes. The fastest record was under 8 minutes. The water company now makes this clamp standard equipment for all repair crews.
We offer a 10-year warranty. All moving parts pass durability tests. The hinge opens and closes over 5,000 times without wear. The bolts have anti-rust treatment and stay corrosion-free in storage. Each clamp comes with a QR code on the housing. Scan it to watch an installation video. This helps new users learn quickly.
Specifications Table
|
Parameter |
Specification |
|
Application |
Time-sensitive emergency repairs |
|
Working Pressure |
≤1.6 MPa |
|
Housing Material |
QT450 ductile iron (hinge connection) |
|
Sealing Material |
EPDM rubber |
|
Bolt Grade |
8.8 high-strength steel (captured design) |
|
Surface Treatment |
Epoxy powder coating |
|
Diameter Range |
DN15 – DN300 |
|
Installation Time |
~10-15 minutes (skilled worker) |
|
Warranty |
10 years |
