Fast Response for Burst Pipes

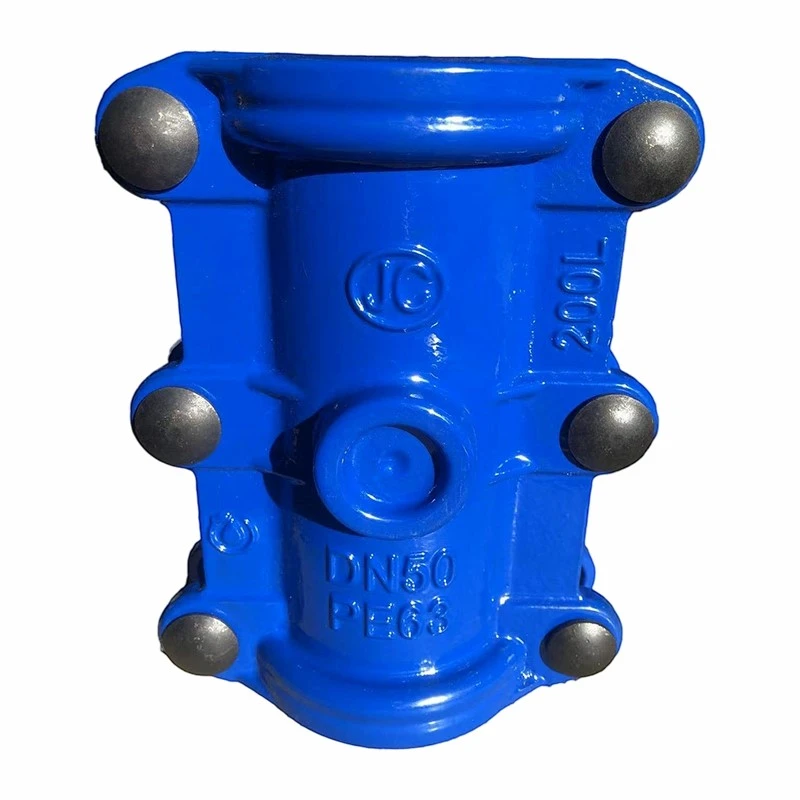

The Emergency Pipe Repair Clamp is made for burst pipe emergencies. Every minute counts when a main breaks. Water floods streets and damages property. This clamp is designed for the fastest possible deployment. It comes pre-assembled from the factory. You open the box and install it directly. No assembly, no parts counting, no delays.
The design uses the fewest possible bolts. The bolt pattern is simple and intuitive. Even a first-time user can follow the installation marks on the housing. All bolts are pre-installed. You do not need to find missing hardware at the job site. The housing is made from thick QT450 ductile iron. It resists impact and handles high pressures. The EPDM gasket is flexible and seals across a wide range of pipe sizes.
We hold ISO 9001 certification. Quality inspection and pressure testing are mandatory for every product. Each clamp is tested at 2.4 MPa before shipping. We keep test records for every batch. Our after-sales team is available 24/7. If you have an emergency use question, call us anytime for support.
Works in Extreme Field Conditions
A county in a southwestern mountain region had a DN200 main burst after a landslide. The road was blocked. Heavy equipment could not reach the site. Two repair workers carried our Emergency Pipe Repair Clamp on foot. They walked into the disaster area. They installed it by hand with basic tools. The clamp stopped the leak and restored water to the village. This real case proves the clamp works even without power or heavy machinery.
The clamp has a yellow or orange coating. This makes it easy to find in a crowded truck or storage room. We recommend keeping this clamp as emergency stock. Inspect it periodically and keep it ready for use. We offer a 10-year warranty on this product.
Technical Specifications
|
Parameter |
Specification |
|
Application |
Burst pipe and major leak emergencies |
|
Working Pressure |
≤1.6 MPa |
|
Housing Material |
QT450 ductile iron (thick design) |
|
Sealing Material |
High-elasticity EPDM rubber |
|
Bolt Grade |
8.8 high-strength steel (pre-installed) |
|
Surface Treatment |
Epoxy powder coating (yellow/orange) |
|
Diameter Range |
DN15 – DN400 |
|
Installation Time |
~20 minutes (skilled worker) |
|
Warranty |
10 years |
