Gentle Repairs for Small PE Pipes

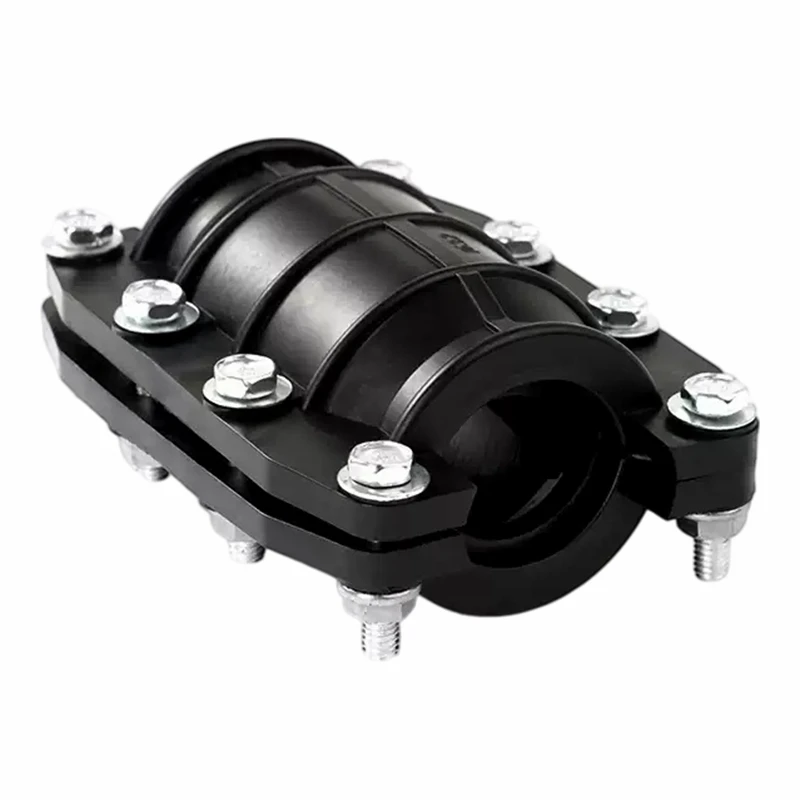

The PE Pipe Repair Clamp (Banding Type) is a simple banding clamp for small PE water pipes. PE pipes are widely used in rural water projects and city networks. Small-diameter PE pipes from DN15 to DN200 are everywhere. They get damaged by rocks or excavation tools. Our clamp gives you an easy, low-cost way to fix these leaks.
PE pipes are flexible and have thin walls. Our clamp has a low-hardness EPDM sealing pad. It seals with less clamping force. This prevents damage to the PE surface. The housing width is enough to cover common pinholes and small cracks. The clamp does not add much bulk after installation. The pipe can still be buried or left exposed without problems.
Our products have a health permit for drinking water systems. We inspect every clamp before shipping. We have a national sales network with good inventory levels. We offer sample orders so you can test the product before buying in bulk.
Helped a Rural Water Project
A rural water project in a southwestern minority region had many DN50 and DN63 PE branch lines damaged by sharp rocks. The area is mountainous and maintenance resources are limited. The water authority bought our PE Pipe Repair Clamp (Banding Type) and distributed them to local caretakers. After simple training, the caretakers could fix leaks in under 15 minutes. This kept water flowing to remote villages.
We offer a 10-year warranty. The sealing pad lasts over 10 years in storage. Sizes match standard PE pipe ODs exactly. Prices are affordable for bulk procurement.
Technical Parameters
|
Parameter |
Specification |
|
Application |
Small PE pipe leak repairs |
|
Working Pressure |
≤1.6 MPa |
|
Housing Material |
QT450 ductile iron |
|
Sealing Material |
Low-hardness EPDM rubber (does not damage PE) |
|
Bolt Grade |
8.8 high-strength steel |
|
Surface Treatment |
Epoxy powder coating |
|
Diameter Range |
DN15 – DN200 |
|
Warranty |
10 years |
